| Place of Origin |
Zhejiang China (Mainland) |
| Brand Name |
Mill |
| Model Number |
GG-A |
| Input Voltage |
12KV |
| Output Voltage |
380V |
| Output Frequency |
50/60HZ |
| Output Current |
100A |
| Output Type |
Triple |

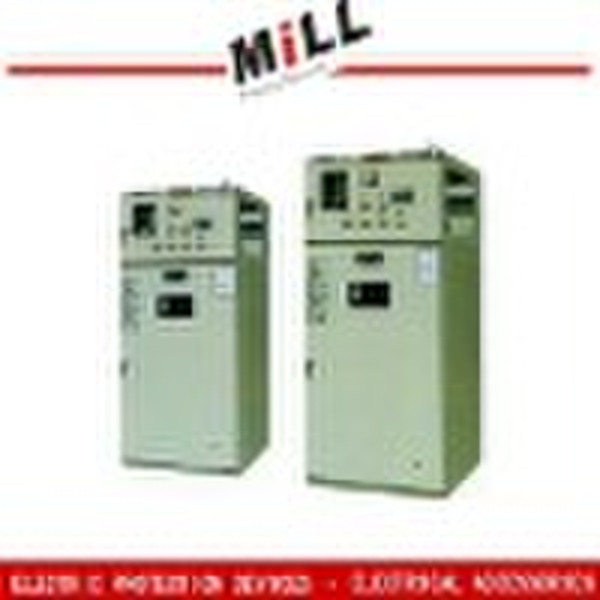

SWITCHGEAR, LOW VOLTAGE SWITCHGEAR, HIGH VOLTAGE SWITCHGEAR,LV SWITCHGREAR,HV SWITCHGEAR,POWER TRANSFORMER DEVICE,POWER STATION, GG-1A (F) anti-misuse fixed HV switch cabinet ISO9001,ISO14001,OHSAS18001 Partners: FUJI, ABB, Schneider,GE,Moeller.. Our Client List: 2010 Shanghai Expo 2008 Olympic Games Stadium Shanghai Pudong Airport Three Gorges Project Vietnam Song Power Station Korea Pusan the Second Steel Plant Iran Teheran Cement Plant ran Teheran the Third Chemical Plant Burundi Hydroelectric Station Malaysia Cement Plant Hydroelectric Station GG-1A (F) anti-misuse fixed HV switch cabinet is suitable for the single bus system of 50Hz AC, rated voltage 3,6,12 KV and rated drop-out current 31.5 KA to receive and distribute power. The cabinet has the features of spacious, reasonable clearance, safe, easy-installation and easy maintenance, safe running. It is also with complete design of the main circuit, which meets all the requirements of the various distribution systems. This product is the improved products of GG-1A HV switch cabinet, and it meets the requirements of the five defense of the electrical water ministry. 1. Technical parameters Rated voltage (KV) 3, 6, 10 Rated current (A) 200, 400, 600, 1000, 2000, 3000 Rated drop-out current (KA) Vs1I (ZN28 10 630A) 20KA VS1II (ZN28-10 1250A) 31.5 Rated current breaker capacity (KA/MVA) VS1II (ZN28-10 3150A) 3/150 6/300 10/500 Operating mode Manual, electric, spring Bus system Single bus External dimension (mm) L*W*H 1200*1200*3100 DETAILS INFORMATION PLEASE INQUIRY
